Modular Embedded Controller

Intergrated BlueTooth

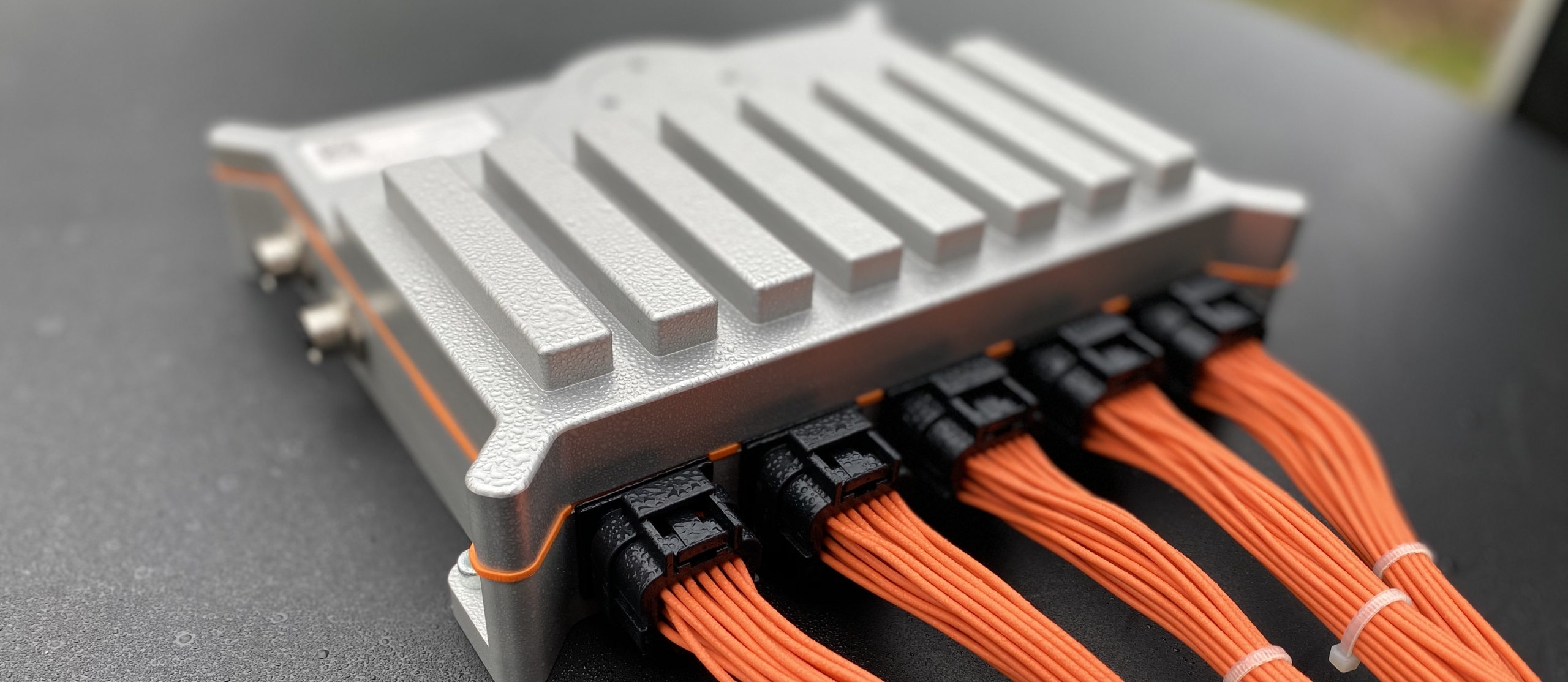

Aluminium Enclosure

8 Modules

Automotive Connectors

Modular Embedded Electronics

Fast, Custom and Robust

GOcontroll developed a modular embedded controller which can be configured for a wide range of applications. Your custom hardware is ready to be used within a few minutes. Simply plug in the modules you need for you application and you are ready to go.

Build you custom controller

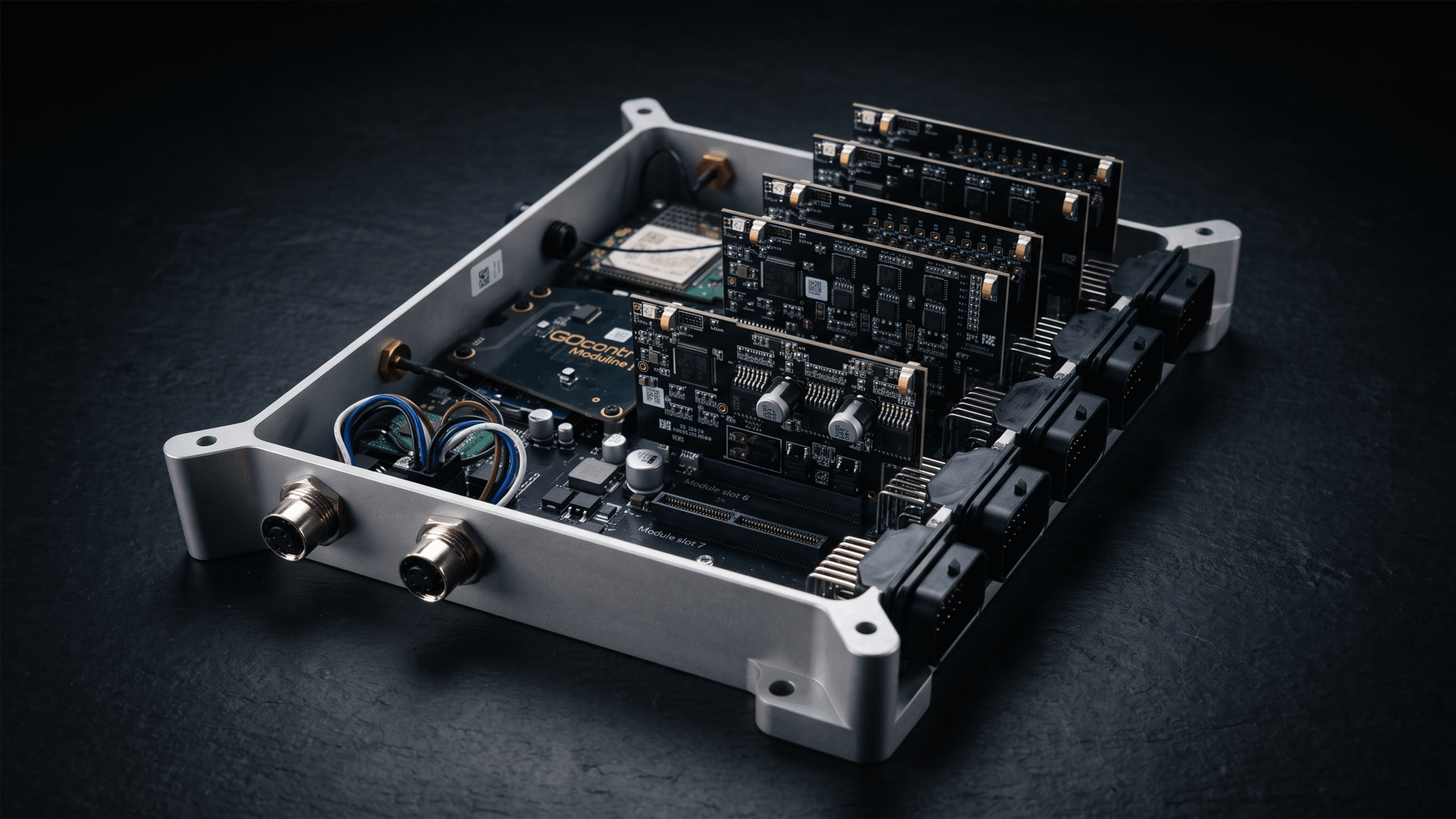

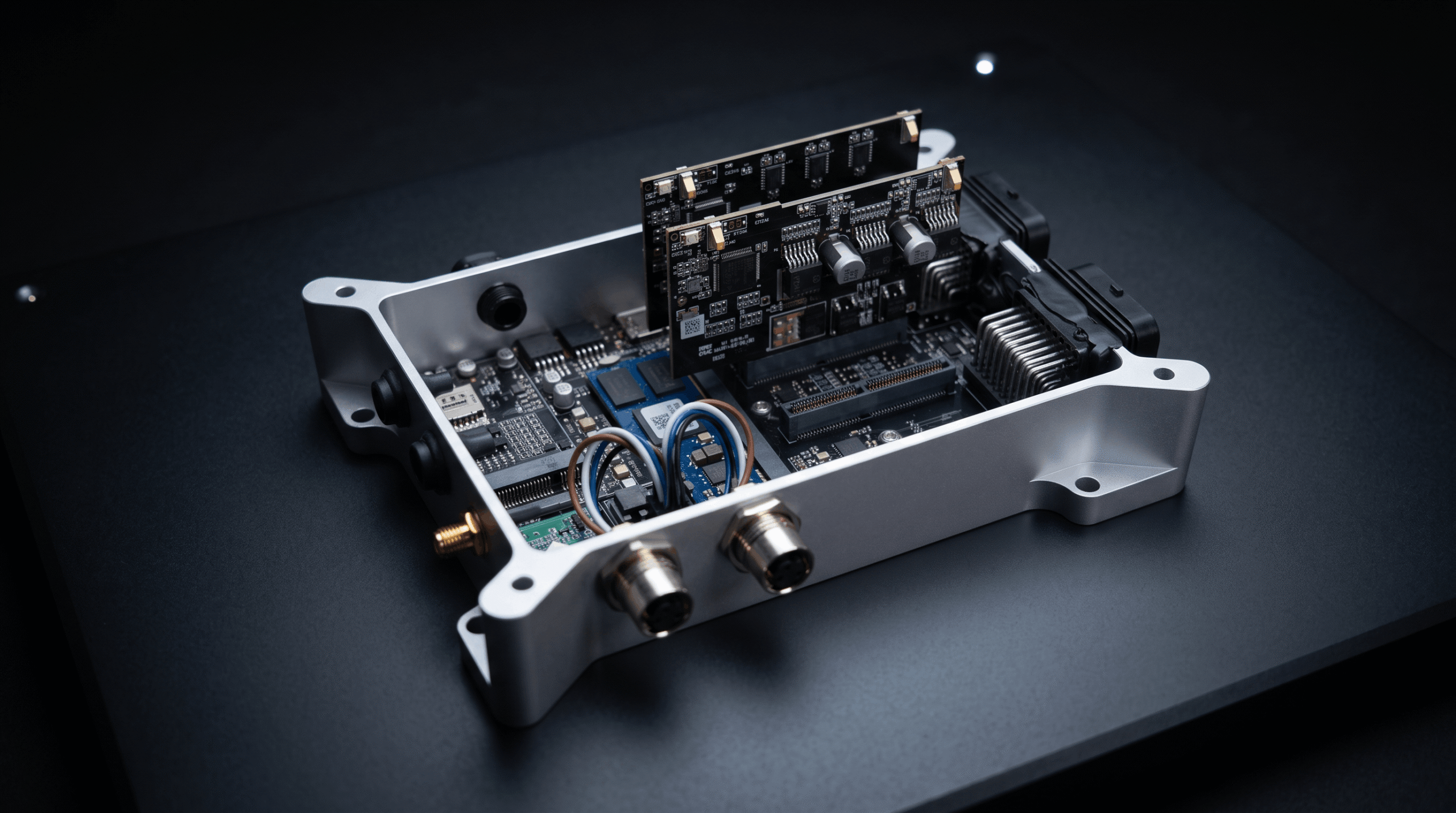

Building your custom controller is easy. Plug the modules you need for you application into your processor board, close the aluminium housing and the hardware is ready to use. With the help of a model bases software development environment, you can build you control algorithm without the knowledge of a programming language. Finally wire up you controller and you system is ready to use.

Starting with the processor board

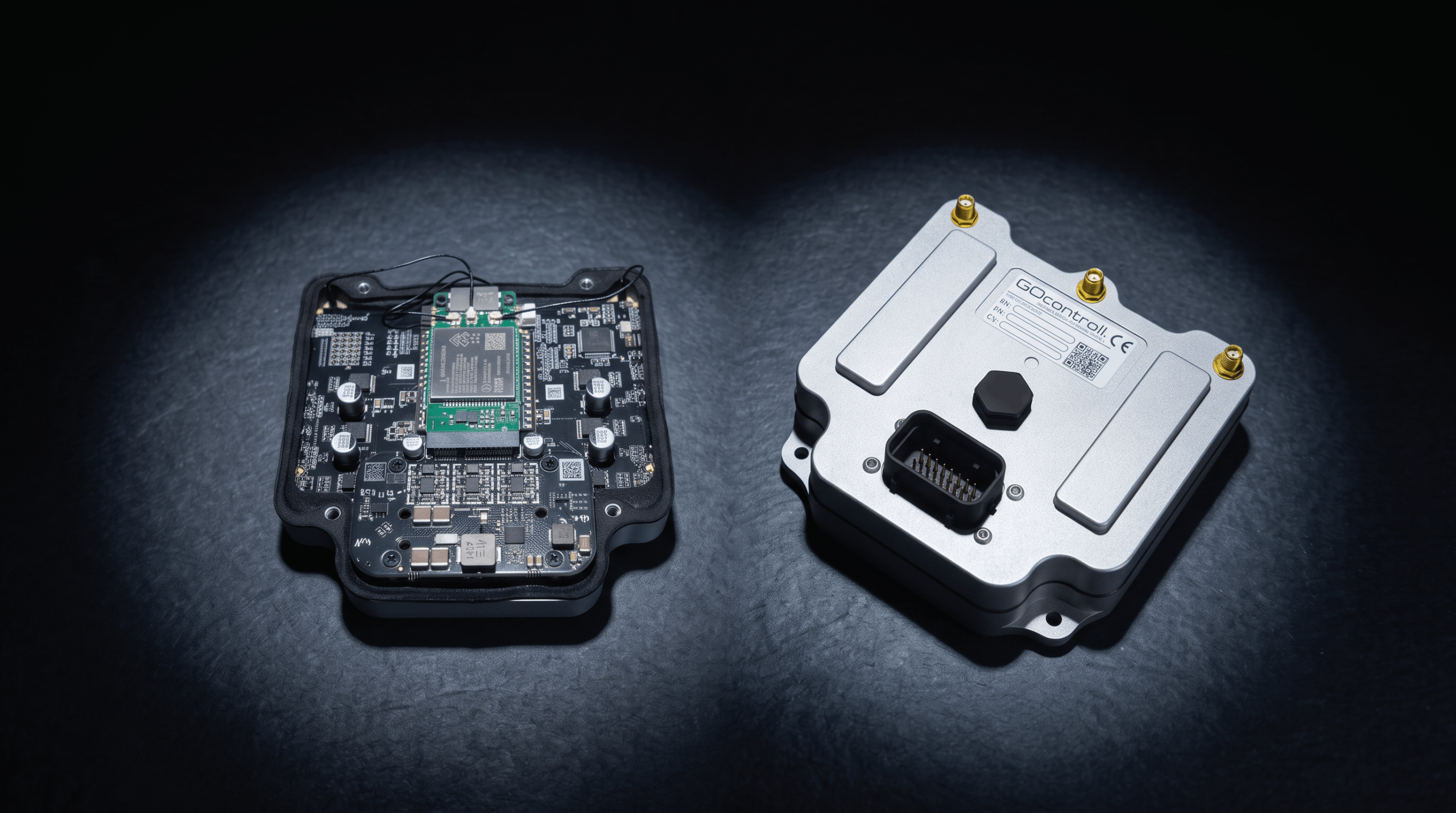

The base of your custom controller is the processor board. There are several commonly used features integrated on the processor board such as BluetTooth, USB, Ethernet, CAN communication ports, MMC storage and the possibility to add an Arduino shield. For specific input, output, you can extent your controller with up to 8 GOcontroll modules.

Select your modules

According to your application demands, you can extent you custom controller with modules. For example,you want to set up you IoT controller to measure some analog and digital values and send them over the internet, Simply plug in a 6 channel input module and a GSM-GPRS module. Do you also want to control some actuators from over the internet? No problem. the only thing you have to do is add an extra 6 channel output module.

A protective enclosure

Your custom hardware needs to be protected against hars environments. Your GOcontroll controller comes with a robust aluminium enclosure to protect your modular electronics and to handle the heat dissipation from some modules during high power control.

Program Your Control System

Rapid prototyping requires the ability to build hardware and software for your control system in a short time. Beside the modular embedded electronics, GOcontroll also offers some handy tools/library’s to build your control system in no time. The GOcontroll Moduline can be programmed in a model based environment with the help of Matlab/Simulink or using an open source software library in de C programming language.

Model based Software Development

Rapid prototyping requires the ability to build hardware and software for your control system in a short time. Beside the modular embedded electronics, GOcontroll also offers some handy tools/library’s to build your control system in no time. The GOcontroll Moduline can be programmed in a model based environment with the help of Matlab/Simulink or using an open source software library in de C programming language.

Model based software development
C Programming library

C-Language Software Library

For users who not want to commit to Matlab Simulink, GOcontroll has developed an extensive library based on open source libraries. The library configures and controls all the standard peripherals on the processor board and can interact with all the modules that are available for the GOcontroll moduline. Since the library takes care of all these tasks, you can directly start with programming your control system in the C programming language.

How to contact us?

If you have any question about the GOcontroll Moduline Modular Electronics, feel free to send us a mail.
